Improving data quality and operational efficiency in high-flow gas pipelines

A Practical Approach Using Dynamic Speed Control(DSC 2.0) with DfL-UHR Technology

Executive Overview

Inline inspection remains one of the most critical components of pipeline integrity management, but the quality of any inspection is ultimately dependent on the operating conditions experienced during the run. Although advancements in sensor technology have significantly improved anomaly detection capabilities, gas pipeline conditions continue to introduce challenges that directly impact data quality. One of the most influential variables affecting inline inspection performance is tool velocity. In high-flow gas systems, maintaining a stable inspection speed can be difficult, and variations in tool speed directly affect the ability to detect, size, and characterize anomalies consistently.

The integration of Dynamic Speed Control (DSC 2.0) with Ultra High Resolution DfL (DfL-UHR) technology provides a practical solution to these challenges. By regulating tool velocity and improving flow conditions through the inspection assembly, operators can create a more controlled inspection environment capable of producing consistent, repeatable, and higher-quality data without introducing significant operational complexity.

The Reality of Inline Inspection in Gas Pipelines Gas pipeline systems are inherently dynamic. Flow rates fluctuate, delivery demands change, and varying offtakes influence internal pipeline conditions throughout an inspection run. Unlike liquid systems, where flow conditions can often be controlled more directly, gas pipelines frequently expose inline inspection tools to changing velocities and unstable operating environments. These variations can create inconsistent inspection conditions that ultimately affect data collection quality and tool performance.

In many cases, inconsistencies in tool behavior are not immediately apparent during the inspection itself but instead become evident during data analysis or field validation activities. Variations between reported results and excavation findings are frequently traced back to unstable tool velocity, inconsistent sensor contact, or debris interference during the inspection. The challenge is not simply moving an inspection tool through the pipeline, but ensuring that the system operates under conditions that allow it to perform as designed.

The Impact of Tool Velocity on Data Quality

Tool velocity directly affects the performance of magnetic flux leakage (MFL) inspection technologies. As outlined within Enduro’s performance specifications, the ability to detect small anomalies such as pinhole corrosion depends heavily on the amount of time a sensor is exposed to the feature. As inspection speed increases, the effective exposure window decreases, reducing the likelihood of capturing a complete and accurate signal response.

This relationship becomes especially important when evaluating small-volume or steep-sided anomalies that naturally produce weaker magnetic signatures. At elevated velocities, these features become more susceptible to under-sizing or mischaracterization. Even with increased sensor density and high- resolution inspection technology, the fundamental physics associated with signal acquisition remain unchanged. Excessive or inconsistent velocity ultima tely lea ds to inconsistent data quality, which directly impacts integrity decision-making, repair prioritiza- tion, and overall confidence in the inspection results.

Limitations of Traditional Inspection Approaches

One of the most common approaches to manage tool velocity involves reducing pipeline flow rates to bring inspection speeds within an acceptable operating range. While this can be effective, it is often difficult to implement in high-demand gas transmission systems where throughput requirements and delivery obligations limit the ability to significantly reduce flow.

Even when flow reductions are possible, maintaining a consistent inspection velocity throughout the run can still be challenging. Gas pipelines are dynamic systems, and variations in elevation, flow demand, compressor activity, and offtakes can all influence tool behavior.

In some situations, inspections are ultimately performed under less-than-ideal operating conditions with the expectation that post-processing or analysis techniques can compensate for velocity variability. Although usable data may still be obtained, inconsistent operating conditions can increase uncertainty within the inspection results and create additional challenges during validation, integrity assessment, and repair activities.

A Combined Approach: DSC 2.0 and DfL-UHR

The integration of DSC 2.0 with DfL-UHR technology represents amore direct and operationally efficient approach to managing inspection conditions in high-flow gas pipelines. DSC 2.0 is specifically designed to regulate tool velocity in challenging gas environments by reducing speed where necessary and maintaining a more stable inspection profile throughout the run. Depending on operating conditions, the system is capable of reducing tool velocity by approximately 50% to 70%.

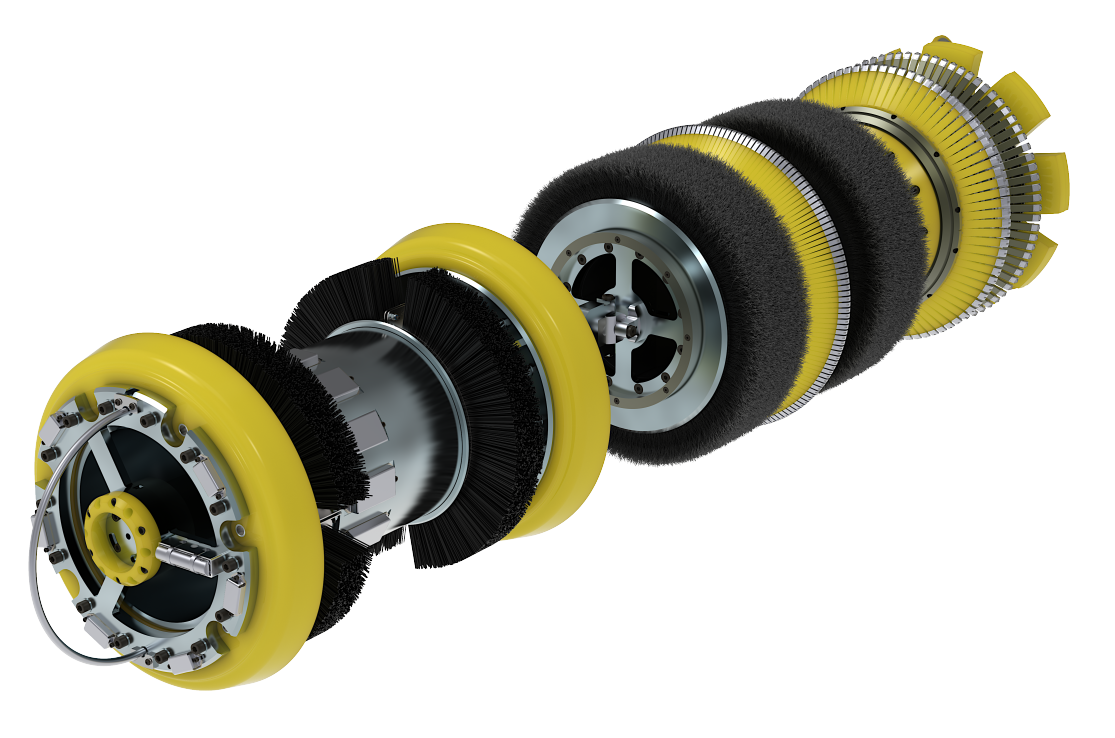

Dynamic Speed Control 2.0

At the same time, the DfL-UHR platform provides high-resolution axial MFL data through increased sensor density and advanced signal capabilities. With hundreds of sensors dedicated to metal loss detection and anomaly characterization, the system is designed to identify both generalized corrosion and smaller, more complex features. When integrated together, DSC 2.0 and DfL-UHR create a more controlled inspection environment that improves data consistency while reducing operational variability.

Gas Flow Dynamics, Bypass, and Debris Management

While velocity control remains a critical aspect of successful inline inspection, gas flow behavior through and around the inspection assembly also plays a major role in overall tool performance. In gas pipelines, debris can behave unpredictably due to fluctuating flow conditions. Even after cleaning operations, residual debris may remain suspended within the pipeline and intermittently cycle through the inspection assembly depending on localized pressure and velocity changes.

When debris repeatedly cycles through the inspection tool, it can introduce signal noise, distortions, and inconsistent sensor responses that negatively impact data quality. Rather than creating a highly restrictive tool train, DSC 2.0 maintains bypass flow across multiple sections of the inspection assembly, allowing gas to move more efficiently through and around the tool. This approach helps maintain a more stable differential pressure profile while reducing the tendency for the inspection assembly to behave as a significant restriction point within the pipeline.

The bypass-driven design also leverages the Venturi effect to influence localized gas flow behavior through the tool. As gas accelerates through bypass sections, localized changes in velocity and pressure generate a more energetic and turbulent flow ahead of the inspection assembly. In high-flow gas pipelines, this turbulence helps keep debris moving ahead of the tool rather than allowing material to settle, fall back, or repeatedly cycle through the inspection system. By promoting continuous debris movement and preserving flow efficiency, DSC 2.0 supports a cleaner sensor environment and contributes to more stable and reliable inspection data.

Technical Performance in Controlled Conditions

Inline inspection systems are designed to operate within defined performance parameters that include velocity, cleanliness, and tool stability. Enduro’s specifications identify an optimal operating velocity range of approximately 3 to 6 mph for accurate data collection. Operating outside of this range can adversely affect both anomaly detection sensitivity and sizing accuracy.

By maintaining tool velocity within the intended oper- ating parameters, DSC 2.0 helps ensure that the DfL- UHR system performs under conditions consistent with its validated design criteria. The platform also supports high-accuracy geometry measurements, including dent and ovality detection with sizing accuracy approaching ±0.5% of outside diameter on larger pipelines. These measurements rely heavily on stable tool positioning and consistent interaction with the pipe wall, both of which benefit directly from controlled velocity and improved gas flow behavior.

Operational Impact and Efficiency Gains

From an operational perspective, integrating velocity control and inline inspection into a single inspection system provides several practical advantages. By combining these functions into one deployment, operators can reduce the need for multiple tool runs, lowering both execution risk and overall project cost. This approach simplifies scheduling, reduces time spent occupying the pipeline, and minimizes operational disruption during inspection activities.

Additionally, because DSC 2.0 actively manages tool velocity internally, operators can often avoid significant flow reductions during the inspection process. This allows inspections to be completed while maintaining higher system throughput. The overall result is a more efficient inspection strategy with fewer operational variables and more predictable outcomes.

Alignment with Industry Standards and Integrity Programs

The DSC 2.0 and DfL-UHR platform is designed to align with established industry standards governing inline inspection performance and data quality. Metal loss detection and sizing capabilities are consistent with the requirements outlined in API 1163, including performance expectations for probability of detection, anomaly sizing accuracy, and reporting consistency.

For geometric inspections, dent and ovality measurement capabilities support the assessment methodologies described within API RP 1183 for strain-based integrity evaluations. A critical aspect of meeting these industry standards involves maintaining the operating conditions under which inspection system performance has been validated. By controlling velocity and improving gas flow behavior, DSC 2.0 helps maintain the inspection system within its intended performance envelope, supporting the collection of consistent and repeatable integrity data.

Conclusion

As gas transmission systems continue operating at higher flow rates, many of the challenges associated with inline inspection are increasingly tied to operating conditions rather than tool capability alone. High-resolution inspection technologies can only deliver accurate results when operating within conditions that support stable tool performance and reliable signal acquisition.

The combination of Dynamic Speed Control (DSC 2.0) and DfL-UHR technology directly addresses one of the most significant variables affecting inline inspection performance: tool velocity. At the same time, the system improves gas flow behavior and debris management around the inspection assembly, creating a more controlled and stable inspection environment. By improving operating consistency throughout the run, operators can increase data quality, reduce operational complexity, and make more confident integrity management decisions based on the inspection results.

References

American Petroleum Institute. (2013). API Standard 1163: In-line inspection systems qualification. American Petroleum Institute. (2022). API Recommended Practice 1183: Assessment and management of dents in pipelines.
